FT-1325 Plasma Cutter Machine(4*8feet)
FT-1325 Plasma cutter Machine is mostly used for metal sheet cut,high powerfully,low cost,with auto arc height
adjust function,convient for your job.Beijing Start control system easy to operate.
Applications:
Different metal boards:mild steel,stailess steel,carbon steel, LC steel board, copper board,iron board, galvanization board, titanium board etc.
Features
1.All-welded framework, easy handle and durable use.
2.Fast cutting speed and high accuracy, small and neat cutting mouth. Improved contral mode to avoid the second process.
3.Well-set Nc system, automatic arc and stable performance, rate of success can reach 99% above.
4.Support standard G-code file, USB file transfering, easy and fast handled.
Performance Parameter
| machine model | FT-1325 Plasma Cutter | FT-1530 Plasma cutter | rail type |
| Processing area | 1300X2500mm 4feet*8feet | 1500x1300mm 5feet *10feet | according to the actual requirements |
| Cutting speed | 0-8m/min | 0-8m/min | 0-8m/min |
| idle speed | 0-50m/min | 0-50m/min | 0-50m/min |
| power | 8.5kw-10.5kw | 8.5kw-10.5kw | 8.5kw-10.5kw |
| Input voltage | 3 phase 380 v | 3 phase 380 v | 3 phase 380 v |
| Power frequency | 50hz | 50hz | 50hz |
| Support transmission mode | USB | USB | USB |
| Striking the arc way | non-contact striking the arc | non-contact striking the arc | non-contact striking the arc |
| The arc and adjustable block | The arc and adjustable block | The arc and adjusta |
Machine Details
Samples:
|
|

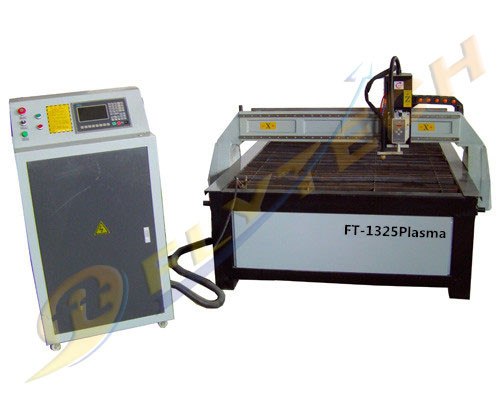

1325 metal sheet plasma cutter machine with Start control system Images
|
